What Designers Need to Know About Custom Gym Flooring

Rubber Mat 202509051652291 (15)[1]

A designer must specify the correct material type, thickness, density, and subfloor preparation protocol for each zone. Base your specifications on intended use—from 8mm high-density rubber for general fitness to 30mm+ systems for Olympic lifting—to ensure longevity, safety, and acoustic performance.

As an engineering director, my role is to bridge the gap between a designer’s vision and the physical realities of a high-use athletic environment. The choice of gym flooring is a technical specification with major consequences for client satisfaction, safety, and the longevity of the space. A floor that fails is a failure of the entire design. This guide provides actionable, engineering-based information for design and renovation professionals. We will move beyond aesthetics to discuss the specific performance criteria, manufacturing realities, and technical pitfalls that I see on projects every week. My goal is to equip you with the knowledge to write a specification that is both beautiful and bulletproof.

An engineering diagram showing layers of gym flooring, from subfloor to surface

This is not a sales pitch. This is a technical primer to help you make informed decisions that protect your design, your client, and your reputation.

How Do You Specify Materials for Performance, Not Just Appearance?

You specify materials by matching technical properties to functional zones. For example, specify SBR rubber with a Shore A hardness of 60-65 for weight areas, and a commercial-grade LVT with a 20mil (0.5mm) wear layer for reception areas.

Material Key Technical Spec Ideal Application Zone
Rubber Thickness (8mm-30mm) & Shore A Hardness (60-65) Free weight, functional training
LVT Wear Layer Thickness (min. 20mil / 0.5mm) Lobbies, locker rooms, cardio
Artificial Turf Pile Height & Face Weight (e.g., 15mm, 50 oz/sq yd) Sled push, agility, sprint tracks
Hardwood Species & Finish (e.g., Maple with polyurethane) Group fitness, yoga, dance

A material specification is more than a name; it’s a set of performance parameters. As your technical partner, my team’s first questions are always about function: What is the maximum dumbbell weight? Will there be Olympic lifting? What is the expected foot traffic? The answers dictate the engineering requirements. For example, a "rubber floor" can mean many things. Recycled SBR (Styrene-Butadiene Rubber) is the industry standard for durability in weight rooms. EPDM (Ethylene Propylene Diene Monomer) granules are often added for color, but a higher EPDM percentage can sometimes reduce tensile strength. It is this level of detail that ensures the final product meets the demands of the space. The goal is to create a comprehensive specification that leaves no room for error or substitution with inferior products.

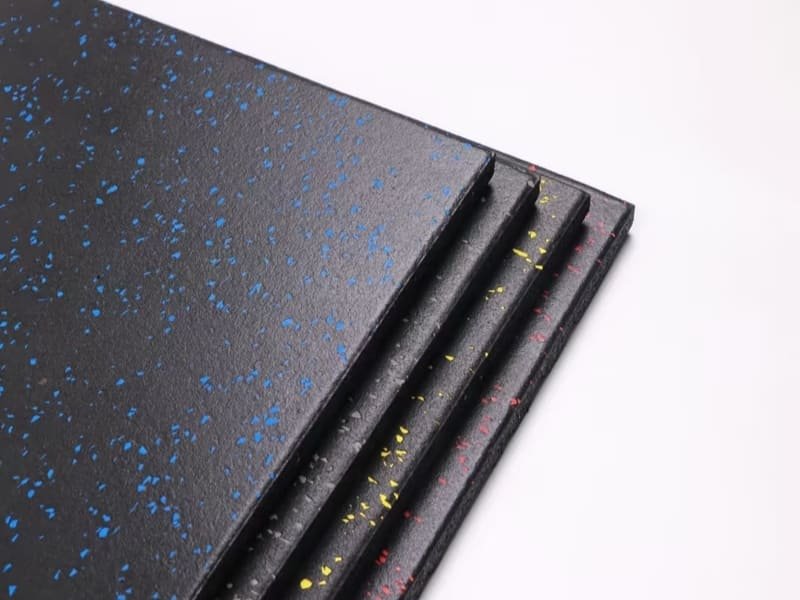

Rubber Flooring (SBR/EPDM)

For free-weight areas up to 50kg, specify an 8mm-12mm thick, high-density (900 kg/m³) SBR rubber tile or roll. For dedicated Olympic lifting zones with repeated drops of 150kg+, you must specify a 30mm or thicker flooring system, often on a raised platform, to prevent subfloor cracking. The Shore A hardness should be between 60 and 65; anything softer will dent under equipment, and anything harder will provide poor impact absorption.

Luxury Vinyl Tile (LVT)

The single most important specification for LVT in a commercial setting is the wear layer. Do not specify anything less than 20mil (0.5mm). This transparent top layer is what protects the printed design from foot traffic and abrasion. For entrances and main corridors, a 28mil (0.7mm) wear layer is even better. Also, specify products with rigid core construction (SPC – Stone Plastic Composite) for better dimensional stability in areas with temperature fluctuations.

Artificial Turf

For functional training, specify a short, dense turf. A pile height of 12-15mm with a high face weight (40-60 oz/sq yd) provides the durability needed for sled pushes without the friction that can cause trips. Specify a product with a built-in foam backing (e.g., 5mm) to provide shock absorption, or plan for a separate rubber underlayment.

Hardwood Flooring

The industry standard for athletic use is Northern Hard Maple. It offers the best combination of hardness and shock resistance. Specify a finish designed for sports floors, typically a high-grade, water-based polyurethane, which provides the necessary grip coefficient for athletic movements.

A close-up shot showing the texture and cross-section of different flooring materials

Once the base material is correctly specified, you can leverage manufacturing capabilities to integrate branding in a way that lasts.

How Is Branding Physically Integrated into High-Durability Flooring?

Durable branding is achieved by embedding custom designs into the floor, not applying them to the surface. This involves precision waterjet cutting of different colored materials and fitting them together, ensuring the logo is as durable as the floor itself.

Customization Method Manufacturing Process Durability Factor
Inlaid Logos Waterjet cutting and piecing materials High – Wears at the same rate as the floor
Color Zoning Using full-depth colored material High – Color is inherent, not a layer
Functional Markings Inlaid lines, dots, and ladders High – Cannot wear off like paint

Surface-level paint or decals will fail in a commercial gym environment. They inevitably scuff, peel, and chip from heavy traffic, harsh cleaning chemicals, and dropped equipment. As an engineer, I only recommend methods that integrate branding into the structure of the flooring. This approach ensures the design maintains its integrity for the life of the product. When we receive a design file with a logo or floor markings, we translate that into a CAD file that controls a waterjet cutter. This tool cuts the shapes from different colored rolls of rubber with extreme precision. The pieces are then assembled like a puzzle and bonded together. This process costs more upfront than painting, but its longevity makes it the only professionally acceptable solution. It delivers a seamless, high-end look that will not degrade over time.

The Power of an Inlaid Logo

When you specify an inlaid logo, you are specifying a permanent branding feature. The logo and the surrounding floor are the same material, just different colors. They have the same thickness, density, and texture. This means they will wear evenly and can be cleaned using the same methods without fear of damaging the design.

Color and Functional Zoning

Zoning with color is a highly effective design tool. It also improves safety and facility management by visually separating different activity areas. We achieve this by using materials that are colored through their entire thickness (known as full-depth or through-body color). For functional markings like agility ladders, sprint lanes, or distance markers, the same inlay process is used. This is vastly superior to tape or paint, which requires constant maintenance and looks unprofessional.

A detailed image of a waterjet-cut custom logo being inlaid into a rubber gym floor

A great design with integrated branding is only as good as its foundation. The next section covers the critical technical details that every specification must address.

What are the Non-Negotiable Technical Checks for Installation?

The three non-negotiable checks are: 1) Subfloor moisture testing (must be below 3 lbs/1000 sq ft/24 hrs). 2) Subfloor flatness verification (within 3mm over a 3m radius). 3) An acoustic plan if the gym is above any occupied space.

Technical Check Industry Standard / Method Why It’s Non-Negotiable
Moisture Test Calcium Chloride (ASTM F1869) or RH Probe (ASTM F2170) Prevents adhesive failure, mold, and bubbling
Flatness (FF/FL) "3mm in 3m" Rule (10-foot straightedge) Prevents uneven seams, lippage, and safety hazards
Acoustics IIC (Impact Insulation Class) Rating Mitigates noise transfer and avoids tenant disputes

These are the details that determine project success or failure. I have been called to consult on flooring failures where a six-figure installation was ruined because one of these steps was skipped. Your specification must demand that these checks are performed and documented by the installer before any flooring is laid. Adhesive warranties are voided if subfloor moisture and flatness conditions are not met. In multi-story buildings, failing to meet the required IIC rating can lead to legal action from other tenants. As the design professional, you must protect your project by including these requirements in your construction documents. It shifts the liability to the installer and ensures a durable, high-performance result.

Subfloor Moisture and Flatness

Concrete subfloors can hold a surprising amount of moisture. If flooring is laid over a "wet" slab, the moisture can destroy the adhesive, causing the flooring to bubble and lift. Your spec must require a documented moisture test. Similarly, an uneven subfloor will create unsightly gaps or lippage between tiles and can cause rolled goods to bubble. Specify that the subfloor must be flat to within 3mm over any 3m radius and require the use of a self-leveling compound to correct any deficiencies.

Sound and Vibration Control (IIC Rating)

For any gym not on a ground floor slab, acoustics are critical. The key metric is the Impact Insulation Class (IIC). Many commercial and residential leases require a minimum IIC rating of 50. Dropping a heavy weight can generate an impact that feels like an explosion to the tenant below. A standard 8mm rubber floor on concrete has an IIC of around 40-45. To meet a higher requirement, you must specify a dedicated acoustic underlayment (typically 5mm-10mm thick). Your specification should state the required final IIC rating for the floor/ceiling assembly.

A flooring installer using a 10-foot straightedge to check the flatness of a concrete subfloor

Let’s examine how these technical specifications solved real-world design challenges.

How Do These Specifications Solve Real-World Design Problems?

In practice, these detailed specifications prevent costly failures. For a boutique studio, it meant creating a vibrant, custom-colored floor that would not fade. For a high-rise gym, it meant engineering an acoustic system to prevent noise complaints before they happened.

Theory is one thing; application is everything. These brief case studies illustrate how a technically rigorous approach leads to successful outcomes.

Case Study 1: The Boutique Fitness Studio

  • The Design Challenge: A designer specified a unique, vibrant purple floor to match a fitness brand’s identity. The initial contractor proposed using a standard black rubber floor and painting it.
  • The Engineering Problem: Surface paint on rubber flooring fails quickly under commercial traffic and cleaning. It would scuff and peel within months, ruining the design and the client’s investment.
  • The Specified Solution: We worked with the designer to specify a floor made from polyurethane-bound EPDM granules. This process allows for vibrant, UV-stable colors to be integrated through the full thickness of the material. We produced a custom purple that perfectly matched the brand’s Pantone color. The floor is as durable as standard black rubber, and the color will not wear off.

Case Study 2: The High-Rise Residential Gym

  • The Design Challenge: An architectural firm was designing a gym on the third floor of a luxury condo building, directly above residential units. The condo board required a minimum IIC rating of 55 for the floor/ceiling assembly.
  • The Engineering Problem: A standard rubber floor would not meet this acoustic requirement. Dropped weights would create a significant disturbance for the residents below, leading to complaints and potential legal issues.
  • The Specified Solution: We engineered a multi-layer system. The specification called for a 5mm acoustic underlayment to be installed first, followed by a 10mm layer of high-density rubber tiles. We provided the firm with independent lab testing data showing this assembly achieves an IIC rating of 58, exceeding the requirement. This documentation gave the condo board, the developer, and the design firm complete confidence in the solution.

An acoustic underlayment being installed underneath rubber gym tiles in a multi-story building

These cases show that technical collaboration is key to realizing a design vision without compromising long-term performance.

Conclusion

A successful gym design is built on a technically sound flooring specification. Prioritizing material science, durable branding methods, and rigorous pre-installation checks protects your design and ensures client satisfaction.
